UX And HTML5: Let’s Help Users Fill In Your Mobile Form (Part 1)

UX And HTML5: Let’s Help Users Fill In Your Mobile Form (Part 1)

Stéphanie Walter

Forms are one of the most basic primary interactions users will have with your websites (and mobile apps). They link people together and let them communicate. They let them comment on articles and explain to the author how they strongly disagree with what they’ve written. They let people chat directly on a dating app to meet “the one”. Whether for forums, product orders, online communities, account creation or online payment, forms are a big part of users’ online life.

It’s 2018, and we have more mobile than desktop users around the globe. Yet, we still treat those users as second-class citizens of the web. Everybody writes and speaks about user experience all the time. So, why, why, why are so many websites and products still doing it wrong. Why is their mobile user experience damaged for half of the world? Why is it still a pain, why is it still super-hard to book a flight and register an account in a mobile form today? Users expect better!

Recommended reading: World Wide Web, Not Wealthy Western Web

This is the first part of a series of two articles. In this one, I will sum up some essential best practices to improve your mobile forms, including scannability and readability. I will guide you through label and input placement, size and optimization. We will see how to choose the right form element to reduce interaction costs. Finally, you will learn how to prevent and deal with errors on mobile forms.

In the second part, I will take a closer look at specific mobile capabilities and HTML5 form elements, and we will go beyond classic form elements to make unique and enjoyable web applications and websites.

Note: While most of the code enhancement in this article are web-related (because I don’t know Swift or Java), the usability best practices hold true for mobile applications.

Form Design 101: Prioritizing Scannability And Readability

“A form is the name, value, pairs, in a structure for storing data on a computer barfed out as labels and input fields to human being.” This is a direct quote from Luke Wroblewski at a conference. Like him, I believe that most form usability issues come from this tendency to serve the structure of the database to users.

Strong Information Architecture

To build better forms, you first need to take a few steps away from your database’s structure. Try to understand how users want to fill in forms. This is where doing some usability testing and user research on your forms becomes handy. User mental models is a UX concept that can help you with that. Nielsen Norman Group describes it as “what the user believes about the system at hand”. Ask your tester to think aloud and tell you how they would fill the form. Which steps do they expect? What come first? What comes next? This will give you a better idea of how to structure your form in a more user-friendly way.

Visually grouping fields that belong together will also help users fill a form. In the code, use the fieldset tag to group them programmatically. It will also help screen readers understand the hierarchy.

example of visually grouped forms
Chunking information and grouping related pieces of information helps the human brain process this information in an easy, more readable way (Large preview)

If the form is long, don’t expose everything by default. Be smart about what you display. Use branching wisely to display only the fields that people need. In a checkout form, for example, don’t display all of the detailed fields for all of the shipment options. This will overwhelm the user. Display enough information to help them choose the right shipment option. Then, display only the details and fields related to that choice.

User attention spans get shorter with time: Ask for optional things at the end of the form. For instance, if your form is a customer-satisfaction survey, ask for demographic information at the end. Better yet, auto-fill them, if possible. Ask users only for what’s necessary.

Finally, plan ahead for localization: What will happen when your form gets translated? What will happen, say, for German? Will your design still work?

Label Placement And Input Optimization

Single-Column Layout Works Best

Due to the lack of space, you don’t get endless options for placing labels and fields on mobile screens:

  • Present fields in a single-column layout. There’s no room on mobile for multiple columns. Multi-columns forms are not a great idea on desktop either anyway.

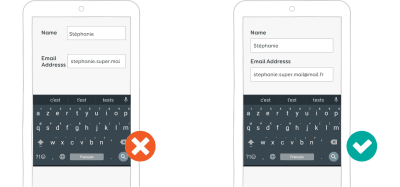

  • In portrait mode, it’s better to place the label on top of the field so that users can see what’s in the field when they type.
portrait mode
In portrait mode, it’s better to put the label on top of the field. (Large preview)

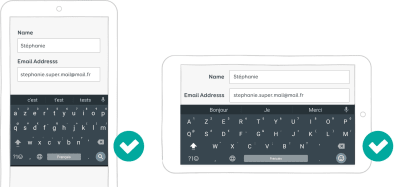

  • In landscape mode, the screen’s height is reduced. You might want to put labels on the left and inputs on the right. But test it to make sure it works.
landscape mode
In landscape mode, you want to put labels on the left and inputs on the right. (Large preview)

For more on label placement, see Baymard Institute’s “Mobile Form Usability: Place Labels Above the Field”.

Labels Should Be Clear And Visible And Work Without Context

Remember that as soon as a field gets focus, the keyboard opens and will take at least one third of the screen’s area. On small mobile screens, users will also have to scroll to fill the form. This means that they will lose part of the context while filling the form. Plan accordingly:

  • Your labels should be clear, visible text that can be read and understood without context. User should be able to complete each label and field pair as a separate task, even if they lose context.
labels should be clear
Just “Address” without context is more complicated to process that “Shipping Address”. (Large preview)
  • Avoid jargon, abbreviations and industry-specific language whenever you can.
  • Be consistent. If you use “customer” in a label once, stick with that word. Avoid using “clients” later because it might confuse users.
  • The font size should be big enough. Test your form on real devices as soon as possible, and adjust the size accordingly.
  • All-caps text can be hard to read for some users. You might want to avoid using all-caps text on labels.
  • The label copy should be short and scannable. If a field needs clarification, don’t put it in the label. Use a field description instead.
Avoid full caps, jargon and very long labels.
Avoid full caps, jargon and very long labels. (Large preview)
Input Size Best Practice

If possible, the size of the input element should match the size of the expected content. This will help users quickly fill in the form and understand what’s expected.

Properly sized inputs help the user scan the form and understand what is expected in the fields.
Properly sized inputs help the user scan the form and understand what is expected in the fields. (Large preview)

Using Masks To Avoid Splitting Inputs On Mobile

Don’t split inputs just for the sake of formatting. It’s especially annoying on mobile, where users can’t use the keyboard to navigate between fields. It requires extra taps just to go to the next field to fill in the form. You might be thinking, “But I’ll automagically put the focus on the next field when I get the required number of characters in that field”. That could work. But you will have taken control of the UI, which becomes unpredictable for the user. Also, it would be a pain if you automagically sent them to the next field and they needed to correct something in the last field. Finally, it’s more complicated to guess what’s mandatory with split inputs. So, let’s stop playing the “But what if” game and simply not split inputs.

Don’t split the phone number into many little inputs.
Don’t split the phone number into many little inputs. (Large preview)

I get it: You still want to be able to format your user’s data in small pieces to help them fill in your fields. And you are perfectly right about that. To do so, you could use masks. Instead of splitting an input, just put a mask on top of it, to visually help the user fill it. Here is a video example of what a mask would look like to help users fill in a credit-card field:

Masks help to prevent errors by guiding users to the correct format. Avoid gradually revealing them — show the format directly. Also, avoid putting fake values in the mask. Users might think it’s already filled. That’s why I’ve replaced the numbers with a little “X” in my demo. Find what works best for your type of input.

Finally, remember that some data can vary between countries, and sometimes the format changes, too (phone numbers, for example). Plan accordingly.

Efficient Fields Descriptions

Displaying efficient field descriptions can make the difference between a seamless and a painful form experience.

What Can Descriptions Be Used For?

Descriptions can help users in so many ways. Here are a few examples.

  • What Exactly Are You Asking For?

    For whatever database-related reason, some shipment companies ask for "Address 1" and “Address 2” fields. This is highly confusing for users, but you might not have a choice here. Add description fields to help users understand what they need to put in each field.

    Inline descriptions help users understand why you need this information.
    Inline descriptions help users understand why you need this information. (Large preview)

    The same goes for acronyms and abbreviations. I know I said that you should avoid them, but sometimes you can’t. If you work on complex forms for a particular industry, for instance, they might have their own set of abbreviations. Any new user who needs to fill in the form might not be familiar (yet) with those abbreviations. Having a description available somewhere will help them.

  • Why Do You Need This Information?
    Users might be reluctant to give you personal information if they don’t understand why you need it and what you will do with it. But sometimes you still need to ask for such information for legal reasons (like date of birth for a website that sells alcohol). Using field descriptions here will help users understand why this kind of information is needed.

    On e-commerce websites, you might want to ask for the user’s phone number in case the delivery person needs to contact them. This is a legitimate reason. So, again, use descriptions to explain to e-commerce users why you need their phone number.

    Sometimes you need information for legal or practical reasons. Again, tell the user why.
    Sometimes you need information for legal or practical reasons. Again, tell the user why. (Large preview)
  • “Where Do I Find the Information?”
    If your users need to find certain information somewhere else in order to fill a form, tell them where to find it. I worked on a mobile app that lets user track their house. Users needed to pair the app to the monitoring device using a serial number. It’s not very easy to find this serial number on the device; it requires some instruction. We added a little ? button next to the serial number field. The button opens a modal that shows a picture and some indication to help the user understand where to find the serial number on the monitoring device. E-commerce websites do the same with promo codes: They give indicators that tell users where to find the codes.
    Users can tap to open a pop-up in which they can find extra information to help them fill in the field
    Users can tap on the link (left) or the question mark (right) to open a popup where they can find extra information to help them fill in the field. (Large preview)
  • “How Should I Format The Information?”
    Some fields need a particular format. In this case, use descriptions to let users know the formatting rules up front. Here are a few examples:
    • Phone number: do I need to put the international dialing code (+xx) in front of the field?
    • Is there a maximum length? Twitter on mobile does a good job with that one.
    • When dealing with monetary amounts, is the format with comma (like 10,000) or a space (like 10 000)?
    • What format do you expect for dates? I’ll let you check on Wikipedia what a nightmare that is. The difference between DD MM YY and MM DD YY can cause a *lot* of trouble to users when booking online.
    Note that a lot of those formatting issues can be solved by input masks. We will come to that later in the article (or you can jump right in if you are impatient).
    In the old 180-character days, Twitter used to tell you exactly how many characters you had left. Also, the date format varies from one country to another, so you might want to explain what to expect.
    In the old 180-character days, Twitter used to tell you exactly how many characters you had left. Also, the date format varies from one country to another, so you might want to explain what to expect. (Large preview)
How To Display Descriptions

In the examples, above, we saw a few ways to display field descriptions. Here is a summary of what to do:

  • Inline descriptions should be directly visible and displayed next to the field.
  • If you need more in-depth descriptions with heavy content, you can use tooltips or modals. Tooltips are generally triggered on hover on desktop and on tap on mobile. The same goes for the modals: Open it when the user taps the help icon or “see more” link, for instance.

Be Careful With Placeholders

I get it: it’s tempting to remove fields on mobile to gain space and use placeholders instead. We’ve all gone down that road. But please don’t. The HML5 specification is clear about this: “The placeholder attribute represents a short hint (a word or short phrase) intended to aid the user with data entry”. And here is why:

  • The placeholder disappears when the user starts typing. The user must then rely on short-term memory to remember what they are supposed to put in the field. If they can’t, they will need to empty the field to see the indication.
  • It’s hard for users to double-check fields before submitting because the fields no longer have any label indications.
  • It’s hard to recover from errors once a field has been submitted because, again, there’s no label to help the user.
Placeholders rely on short-term memory
Placeholders rely on short-term memory. They make forms hard to check before submission. And recovering from errors is hard, especially when error messages don’t help much. (Large preview)

Even if you use placeholders with labels, you might still have some issues. It’s hard to tell the difference between a filled field and a field with a placeholder. I’m a UX designer who writes about mobile form design and even I got tricked last week by one of those. If it happens to me, it will happen to your users — trust me on that one. Finally, most placeholders have light-gray text, so you might have some contrast issues as well.

It’s easy to mistake some form fields for being filled in
It’s easy to mistake some of these fields for being filled in. The right screenshot is something I’ve seen online. I’ll let you guess what is filled in and what is not. (Large preview)

If you want to go deeper in this topic, there’s a great article named “Placeholder Attribute Is Not A Label, and also Joshua Winn and FeedbackGuru go into detail on why this is a bad idea. Nielsen Norman Group also wrote a piece on the topic, named “Placeholders in Form Fields Are Harmful.”

Placeholders are not mandatory in HTML5. From a usability point of view, you most certainly don’t need a placeholder in every field of your form. But with the massive adoption of Bootstrap and other frameworks, it looks like a lot of people just copy and paste components. Those components have placeholders, so I guess people feel kind of obligated to add something to the placeholder in the code? If your form’s placeholders look like “Please fill your — label — here”, you’re doing it wrong.

form example
I’m not joking: I’ve actually seen forms with 12 fields, with each placeholder less useful than the last. (Large preview)

Labels inside fields could, nevertheless, work well for short forms in which fields are predictable. Login forms are a good candidate for this. But please don’t use the HTML5 placeholder to code this. Use a real label in the code and move it around with CSS and JavaScript.

Labels inside fields can work on really short forms, like login forms, where users don’t have a lot of information to remember.
Labels inside fields can work on really short forms, like login forms, where users don’t have a lot of information to remember. (Large preview)

Since the success of Android’s material design, a pattern has started to emerge: the floating label. This label is inside the field when the field is not filled in, so it takes a bit less vertical space on mobile. When users start interacting with the field, the label moves above the field.

This looks like an interesting way to gain some space, without running into the “placeholders in place of labels” issues cited above. Nevertheless, it does not solve the problem of users possibly mistaking a placeholder for filled-in content.

The floating label, even if not perfect, is an interesting alternative to gaining vertical space on the screen.
The floating label, even if not perfect, is an interesting alternative to gaining vertical space on the screen. (Large preview)

Interaction Cost Reduction For Successful Forms

Reducing the interaction cost (i.e. the number of taps, swipes, etc.) of users achieving their task will help you build a seamless form experience. There are different techniques to achieve that. Let’s look at a few of them in detail.

A Magic Study On The Internet Told Me To Reduce The Number Of Fields

More fields mean fewer conversions, right? You might have encountered the “we reduced our subscription form from 11 to 4 fields, and it drove up conversions by 160%” study. It’s a classic. And if you look at their contact form, it kind of makes sense. Why would users want to fill in 11 fields just to contact the company? You can’t ask such a big commitment of people who barely know you, right?

Start by asking only for useful information. Why do you need a person’s gender to create an account for them? Why do you have two lines for the address if your subscription form is for an online service?

Ask only for the information you need. And then ask for the information in context. If you have an e-commerce website, users might be more inclined to give you their address in the shipping section of the checkout process than when they register. It will make your e-commerce registration form so much easier to fill on mobile!

Ask only for the information you need
Ask for the user’s address in the shipping section of the checkout, not when they register. (Large preview)

Also, don’t blindly trust every statistic and study you find on the Internet. Remember the 11-fields-to-4 study? Well another more recent study showed that by reducing fields from 9 to 6, conversions dropped by 14%. Shocking, isn’t it? Why? Well, they removed the most engaging fields. Long story short, they then went back to 9 fields, put the most important on the top, and voilà, conversions increased by 19.21%.

The bottom line is that while these studies are interesting, those websites are not your website. Don’t blindly trust the first study you find on the Internet.

So, what can you do? Test. Test. And test!

  • Do some user testing to see the time to completion of your mobile form.
  • Measure drop outs.
  • Measure problems with certain fields.
  • Measure the frustration associated with certain fields. How willing are users to give that information? How personal is that information?

Optimizing Touch Interactions

Making Controls Touch-Friendly

If your fields are too small or hard to reach, users will make errors and will need extra interactions to achieve their goals. Remember Fitt’s law? You could apply it to mobile design as well: Make your labels, fields and form controls easy to tap by increasing the touch target size. For labels on the web, a little more padding can increase the touchable area. Sometimes you will also need to add some margins between elements to avoid missed taps.

Also, don’t forget to link labels with their components by pairing for and ID values. That way, if the user misses a tap on the label, the corresponding field will still get focus.

On mobile, respect mobile touch-optimized best practices, and make sure inputs are big enough to be easily tappable.
On mobile, respect mobile touch-optimized best practices, and make sure inputs are big enough to be easily tappable. (Large preview)

Steven Hoober conducted some user research on touch areas. You’ll find a summary in “Designing for Touch”. Based on what he discovered, he built a little plastic ruler tool: Read more
